(46X58.5) KSBA Heidelberg Holo Cylinder Two Foil Pulls Hot Stamping & Hologram Printing Machine
For more information (CLICK) on the image
- General Details

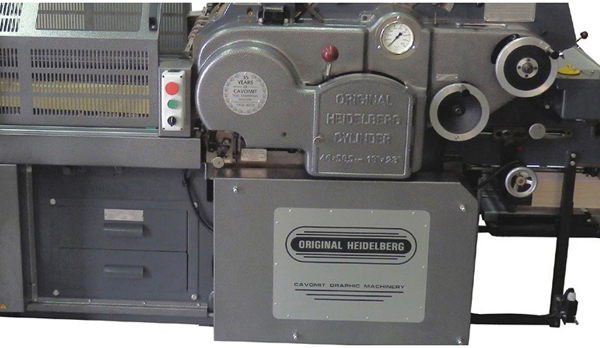

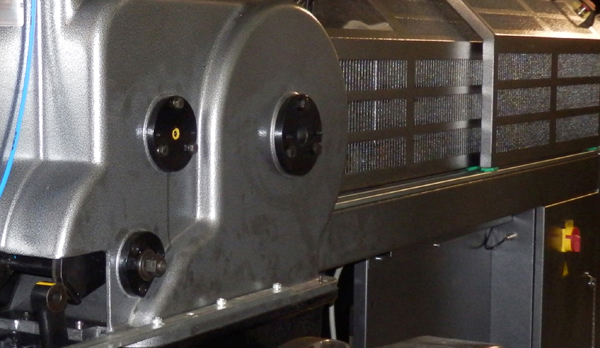

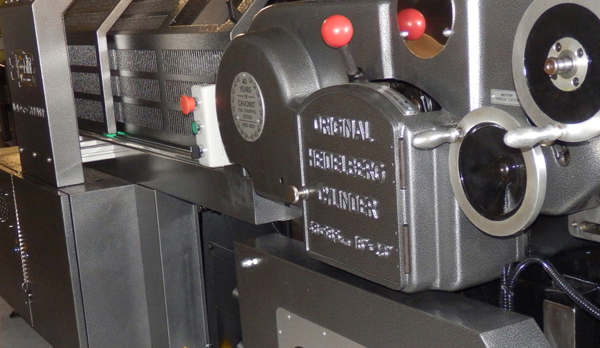

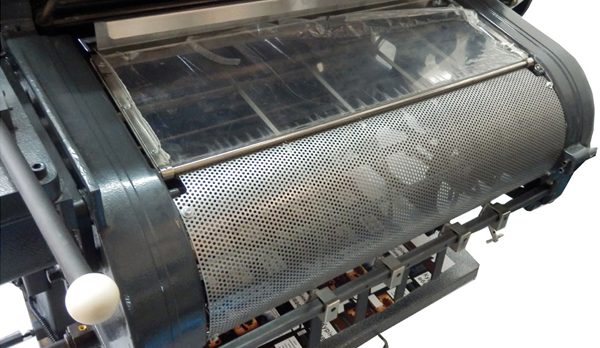

(46X58.5) KSBA Heidelberg Cavomit Holo Cylinder
Two Foil Pulls Hot Stamping & Hologram Printing MachineThe Holo Cylinder (46X58.5) system is manufactured at the factory of
Cavomit company with standard two foil-pull cylinders (upgradable to four)
and is mounted on a machine type Lettepress by Heidelberg.
The letterpress machine is fully reconditioned and maintained with new spare parts
guaranteed by CAVOMIT. The new generation of hot-stamping machines has a big advantage.
They are 1.5 m shorter than the previous models and therefore can be placed easier in small premises.Hot Plate:

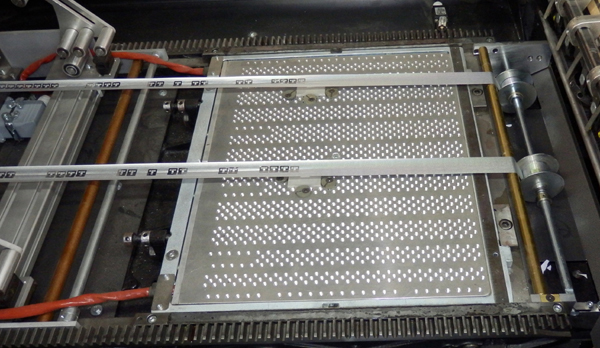

Single-piece hot plate, 16 mm thickness, max. area coverage, high conductivity light alloy.
Temperature insulation from machine body for increased energy savings and optimal heat allocation.
Permanently placed in a printing chase allowing easy replacement with cutting/creasing chase or spare
hot-plate for fast changeover of various printing jobs.
Auxiliary materials can be placed underneath the hot plate in order to achieve simultaneously
hot-stamping and embossing.

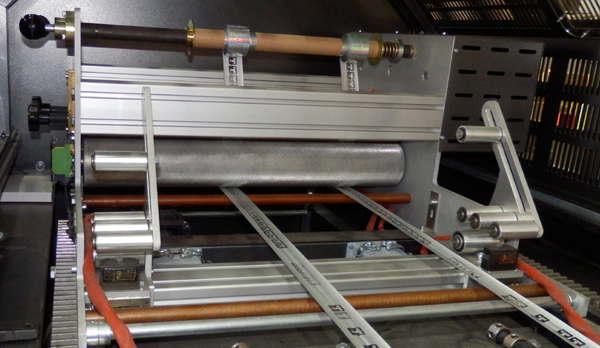

The required precision of the printing temperature is acquired through 12 reliable parallel resistances
unevenly allocated all across the width of the plate in 4 precision temperature control zones controlled

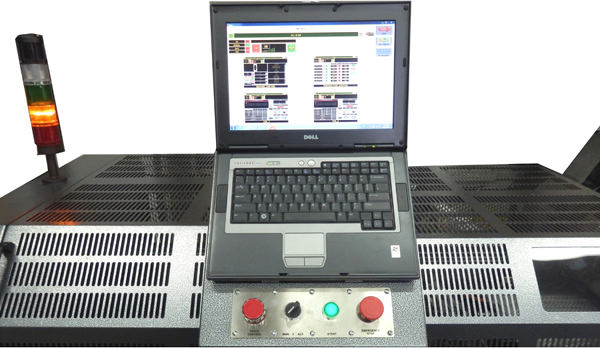

by 4 electronic temperature instruments.The system is operated through a laptop with
Windows software offering following advantages:
1. Better programming of the machine.
2. More warning screens.
3. INTERNET connection.

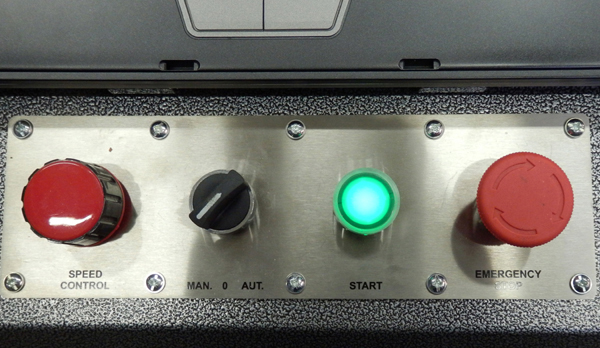

4. Very easy operation.Direct operation switches:
1. EMERGENCY STOP.
2. START.
3. Manual operation of the machine.Operation switches:
1. Machine speed control.
2. Automatic / Manual operation.
3. Machine START button.
4. Machine STOP button. - Technical Specifications
Technical specifications Heidelberg KSBA 46X58.5 Cavomit Holo Cylinder 1. Paper parameters: Paper size max 46 Χ 58.5 cm Paper size min 12 Χ 20 cm Paper sheet thickness 500 grm Feeder pile height 370 mm Delivery pile height 470 mm Max. blocking area 420 Χ 540 mm Gripper margin 8 – 12 mm Packing thickness 1.2 mm 2. Operation control parameters: Control system Laptop with Windows software Foil-pulls & programs Standard 2 – upgradable to 4 Pull step accuracy 0.01 mm Programming per pull cylinder 1-999 short pulls, 1 long pull 0-999 mm per cylinder Foil-pull speed adjustment By inverter Foil-pull cylinders 2 stepper motors (maximum 4) Foil rewind units 2-4 synchronized to stepper motors Counters 5 electronic, 1 mechanical 3. Foil parameters: Foil roll width max 550 mm Foil roll width min 15 mm On upgrade foil pull stations 150 / 300 mm Distance between rolls (min) 2 mm on same bar axis Roll core diameter 16 or 25 mm on same bar axis External diameter of foil roll feed 80 mm on 16 mm or 25 mm core External diameter of used foil 140 mm on 25 mm core 4. Printing parameters: Blocking speed Controlled by inverter, 300-3000 sheets per hour Alternative uses Cutting, creasing, embossing, punching 5. Hot plate parameters: Hot plate Single-piece, honeycomb hot plate Heating zones 4 for optimal temperature allocation Temperature regulation 4 electronic temperature instruments Resistances Parallel 12 Χ 500 W Printing die height 7.00 mm Die mounting on hot plate With micrometric adjustable mounts 6. Hologram registration parameters: Hologram registration Outside hot plate on multi-axial system Printing accuracy +/- 0.5 mm (per image) Printing speed As for standard foil Roll width Standard max 60 mm (other dimension optional) Photoelectric switch Fast response , adjustable sensitivity Optical fibre Mounted at pre-set viewing angle Software Specially developed in-house by Cavomit 7. Physical parameters: Length 3400 mm Width 1600 mm Height 1600 mm Weight 3500 kg Export packing According to the wish of the customer Motor type AC 230/460, 50/60 Hz, 4 HP Total connection capacity 12 kW Voltage 380/460V, 50/60 Hz - Contact Form
