(73X104) S Johannisberg Holo Cylinder Two Foil Pulls Hot Stamping & Hologram Printing Machine

(73X104) S Johannisberg Cavomit Holo Cylinder
Two Foil Pulls Hot Stamping & Hologram Printing Machine

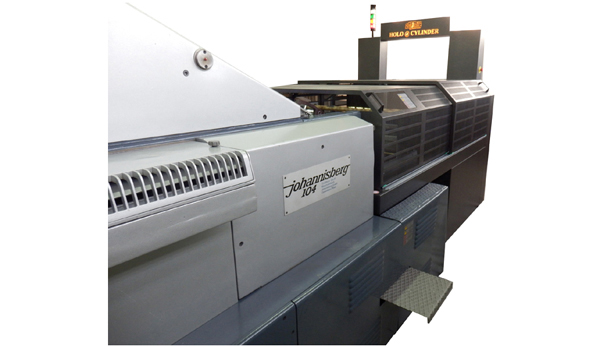

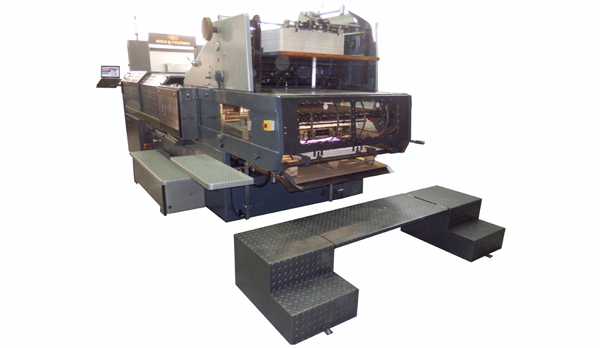

The Holo Cylinder (73X104) system is manufactured at the factory of
Cavomit company with standard two foil-pull cylinders configuration
(upgradable to four) and is mounted on a Johannisberg cylinder letterpress.
The letterpress machine is fully reconditioned and maintained with new spare
parts guaranteed by Cavomit.
The specifications of the original printing press manufacturer are preserved
and restored during reconditioning.
The new generation of hot-stamping machines has a big advantage.
It is 1.5 m shorter than previous models and therefore
can be placed easier in small premises.

Hot Plate:
Single-piece hot plate, 16 mm thickness, max. area coverage,
made of high conductivity light alloy.
The hot plate has temperature insulation from the machine body
for increased energy savings and optimal heat allocation.
The hot plate is placed permanently in a printing chase allowing
easy replacement with cutting/creasing chase or spare hot-plate
for fast changeover of various printing jobs.
Auxiliary materials can be placed underneath the hot plate in order
to achieve simultaneously hot stamping and embossing.
The required precision of the printing temperature is acquired through
(18) reliable, parallel resistances unevenly allocated all across the width of the plate in
(6) precision temperature control zones, controlled by an electronic
(6) temperature instruments.

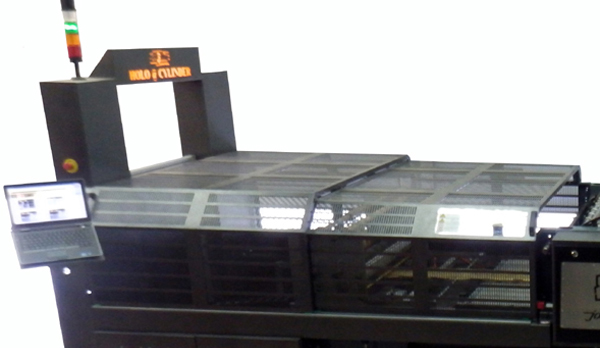

A laptop with WINDOWS 10 software is adapted to the machine for better operation.

The laptop has following advantages:
1. Better programming of the machine.
2. More warning screens.
3. Internet connection.
4. Very easy operation.

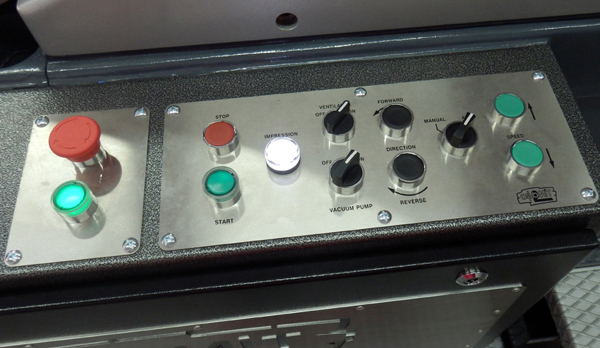

Operation switches:
1. Machine speed control.
2. Automatic / Manual operation.
3. Machine Start button.
4. Machine Stop button.

Direct operation switches:
1. Emergency Stop.
2. Start.
3. Manual operation of the machine.
