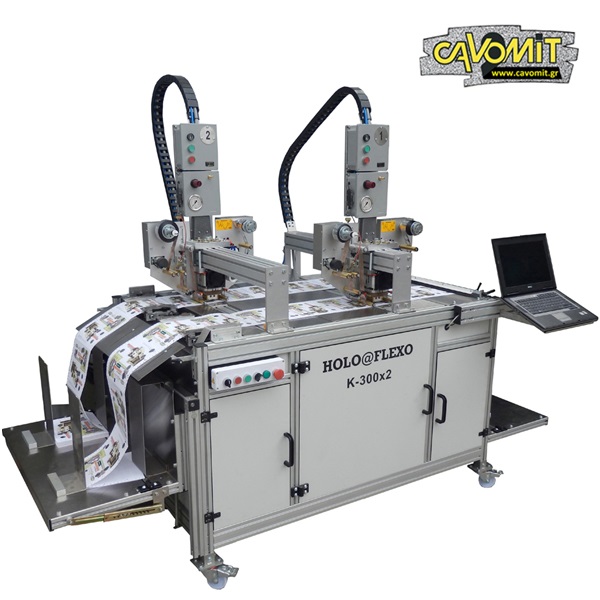

(K-300X2) Holo Flexo Computer Form (Pack To Pack) Two Foil Pulls Hologram Printing Machine

For more information (CLICK) on the image

  1. General Details

    (K-300X2) Holo Flexo Computer Form Two Tractors System Pack To Pack
    Two Foil Pulls Cavomit Ideal For Hologram Printing Machine

    Manufactured entirely by Cavomit company.
    Ideal for hologram registration, hot-stamping and embossing on multi-use computer forms
    such as invoices, cheques and in general documents that need security.
    It is the most productive machine in the security printing market and reaches high speed:
    7.000 prints hourly, per printing head.

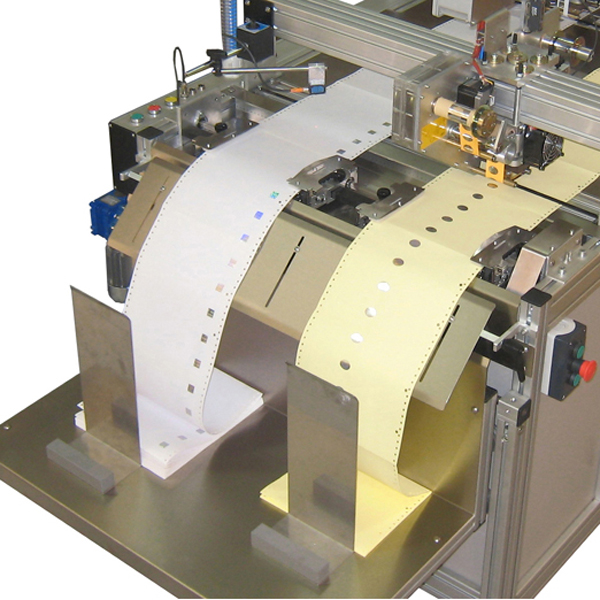

    Manufactured with two to four printing heads and two feeding systems for multi-use
    computer paper (tractors) allowing to double the production capacity and reach the
    speed of 14.000 prints per hour.
    Equipped with a powerful electronic system by Siemens
    with Laptop Windows 10 programming.

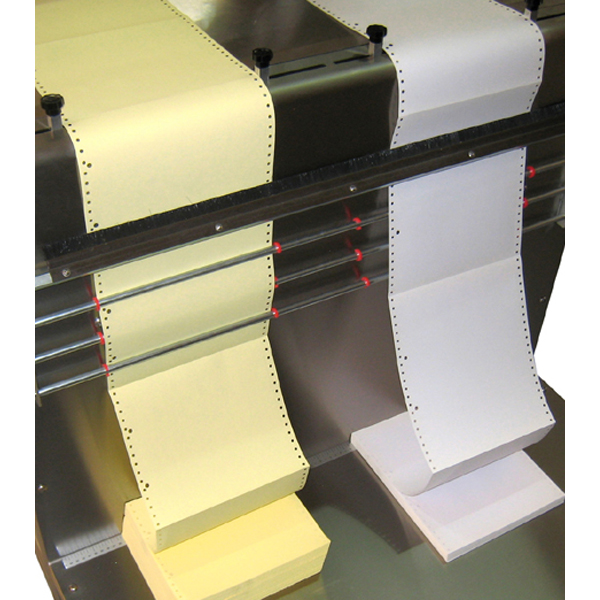

    – Place the documents on the feeder pile.
    – Documents pass through metal bars and under the brush.
    – Document alignment.
    – Capable of operating roll to roll.

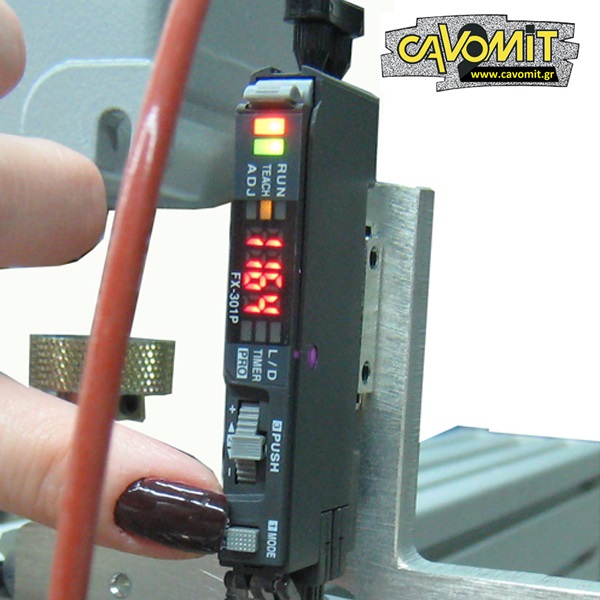

    – Reprinting capability with highly-sensitive optical Laser Sensor.
    – Regulation of compressed air on each piston.
    – Electrical  delivery pile with manual operation handled by
    Up/Down button for   proper folding of multi-use computer paper.
    – Special type gearmotor adapted to the delivery pile for proper operation.
    – The machine is equipped with a compressed air system for proper regulation,
    air dehumidification and lubrication of valves for long lasting operation.

  2. Technical Specifications
    Technical specifications Cavomit Holo Flexo K-300X2
    Operation / impression Automatic – Manual
    Average productivity 7.000 x 2 = 14.000 prints per hour
    Max web width 300 mm x 2
    Min / max document size 1 inch – 99 inch along web
    Hot-plate specifications Two zones, 2 resistances of 200W each
    Temperature regulation Through computer
    Die thickness 6.35 to 7.00mm
    Total voltage Max. 1800W, 12 Amp.
    Capacity – resistances 2 x 200 W for each printing head
    Connection voltage: 380/440V – 50/60Hz
    Independent stepper motors Various programms
    Independent servo motors Normal mode / Hologram mode

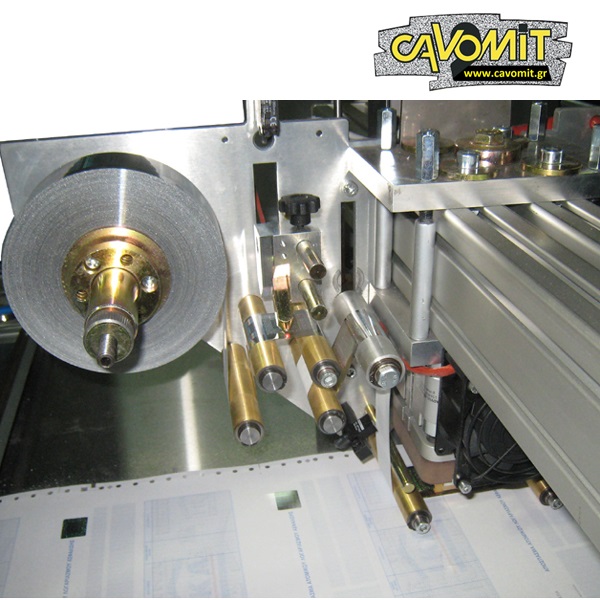

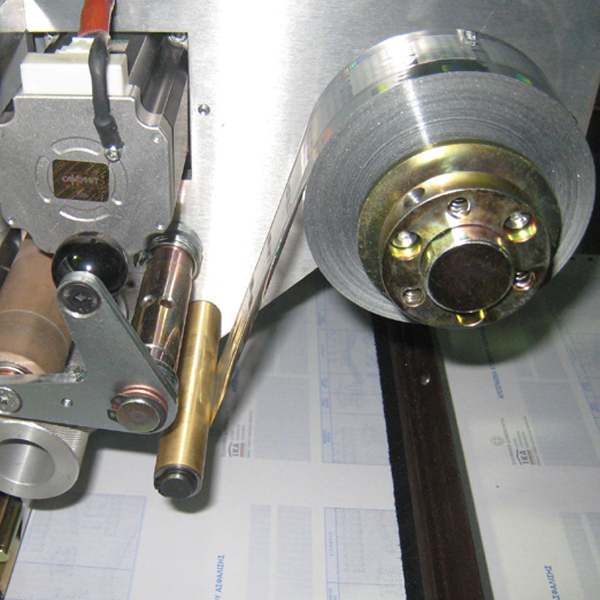

    Max external foil diameter 110 mm on 1” (25mm) core
    Max external used foil diameter 110 mm on 1” (25mm) core
    Hologram registration tolerance Max +/-0.2 non-accumulative
    Rewinders: 2 synchronized to stepper motors
    Dimensions of HOLO FLEXO twin-head machine 240 x 120 x 180 cm
