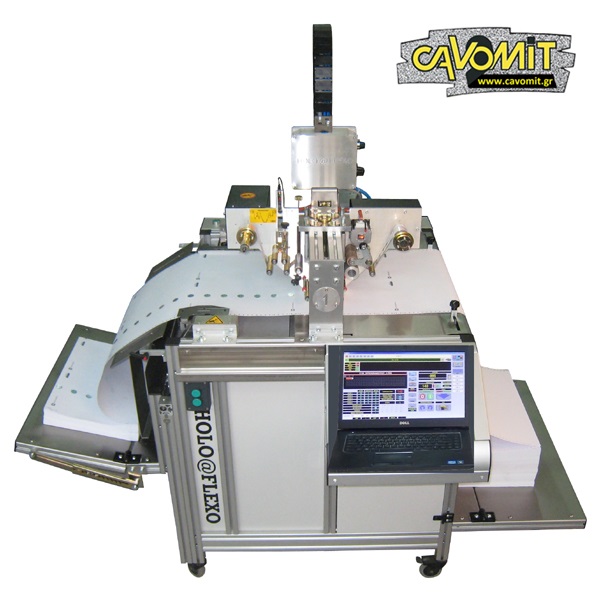

(K-500X1) Holo Flexo Computer Form (Pack To Pack) Hot Stamping & Hologram Printing Machine
For more information (CLICK) on the image
- General Details
(K-500X1) Cavomit Holo Flexo Computer Form Pack To Pack
One Foil Pulls Ideal For Hologram Printing MachineManufactured entirely by Cavomit company.
Ideal for hologram registration, hot-stamping and embossing
on multi-use computer forms such as invoices, cheques etc.
and in general on all documents that need security.
Manufactured with single printing head.

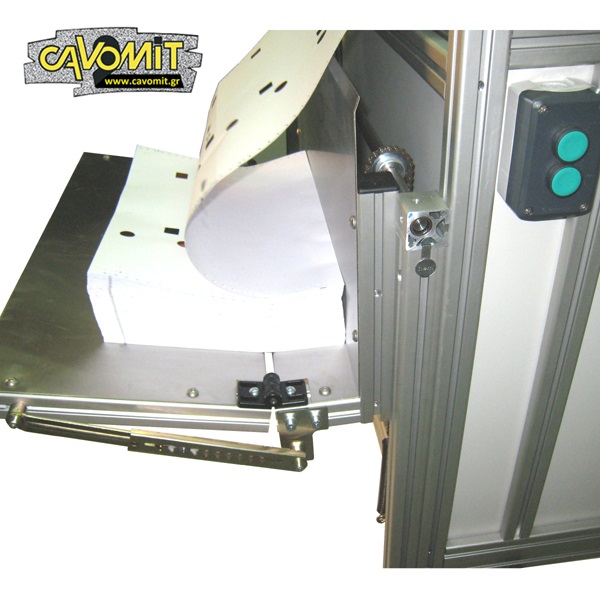

It can reach high speed: 7.000 prints per hour.– Ample document feeder pile.
– Pack guidance under metal bars and brush.
– Document alignment.
– Sprocket feeder.
– Reprinting capability with optical Laser Sensor.

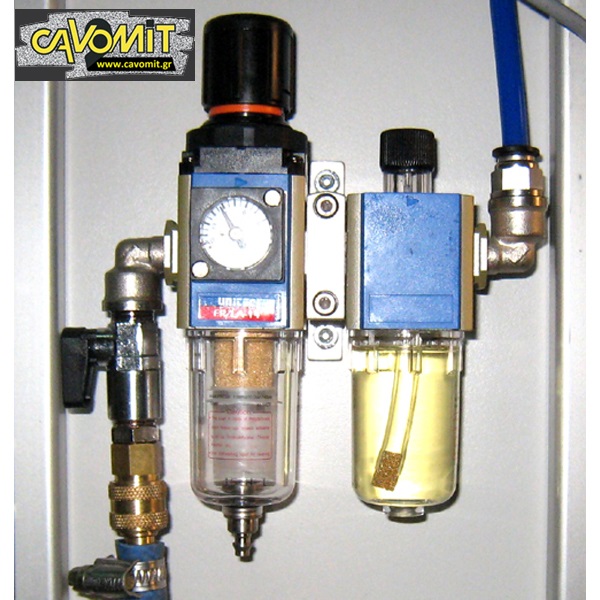

– Regulation of compressed air on each piston.
– Adjustable delivery pile. - Technical Specifications

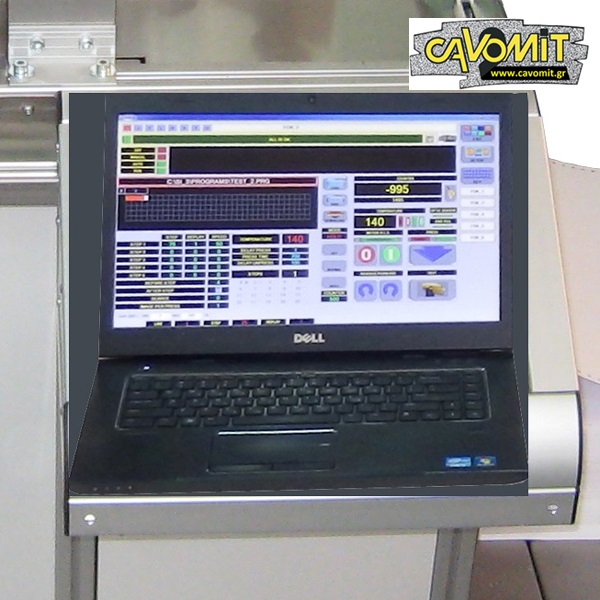

Technical specifications Cavomit Holo Flexo K-500X1 Operation / impression Automatic – Manual Average productivity 7.000 prints per hour Max web width 500 mm Min / max document size 1 inch – 99 inches along web Hot-plate specifications One zone, 1 resistance 200W Temperature regulation Through computer Die thickness 6.35 to 7.00mm Total voltage Max. 1500W, 7 Amp. Capacity – resistances 200 W Connection voltage 380/460V, 50/60Hz Independent stepper motors Various programms Independent servo motors Normal mode / Hologram mode Max external foil diameter 120 mm on 1” (25mm) core Max external used foil diameter 120 mm on 1” (25mm) core Hologram registration tolerance Max +/-0.2 non-accumulative Dimensions of Holo Flexo K-500X1 165 x 170 x 100 cm - Contact Form
