(MDL 122X1) Cavomit New Mechanical System together Heidelberg Platen Machine GT 34X46
For more information (CLICK) on the image
- General Details
Cavomit one, two, three, four, foil pull mechanical hot-stamping attachment
for Heidelberg GT platen press 34X46.
The complete one, two, three, four pull mechanical attachment for the on-site conversion
of Heidelberg platen letterpresses is manufactured at the factory of Cavomit.
The system is ideal for hot-stamping.The system consists of following parts:

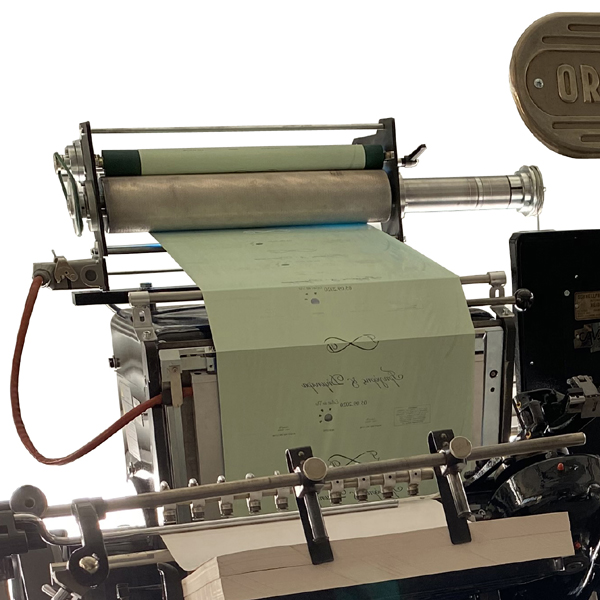

1. Mechanical one, two, three, four, foil pull system
2. Rewind system for used foil.
3. Metal base for the fitting of the system on press.
4. Hot-plate. 300X440 mm

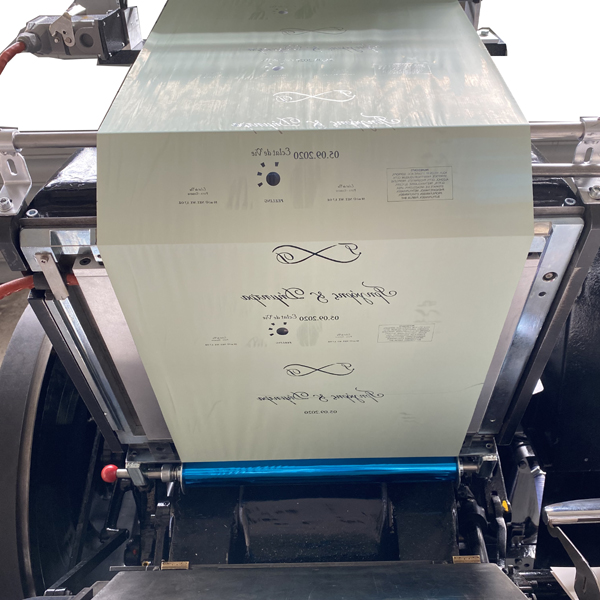

5. Mechanical Hot stamping foil feeding system.

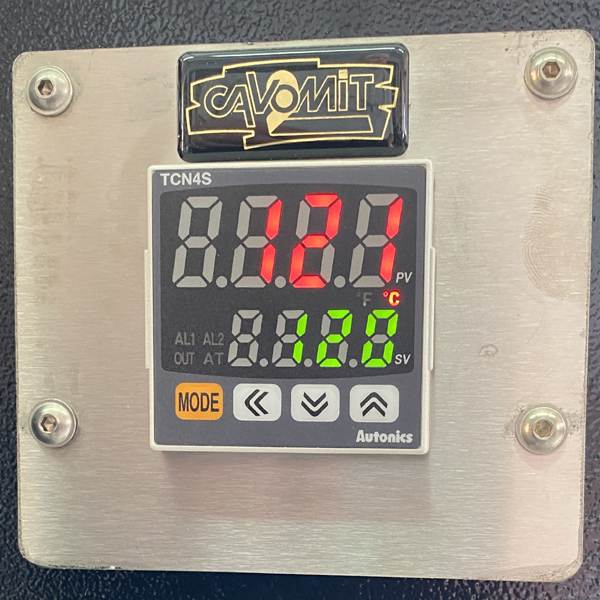

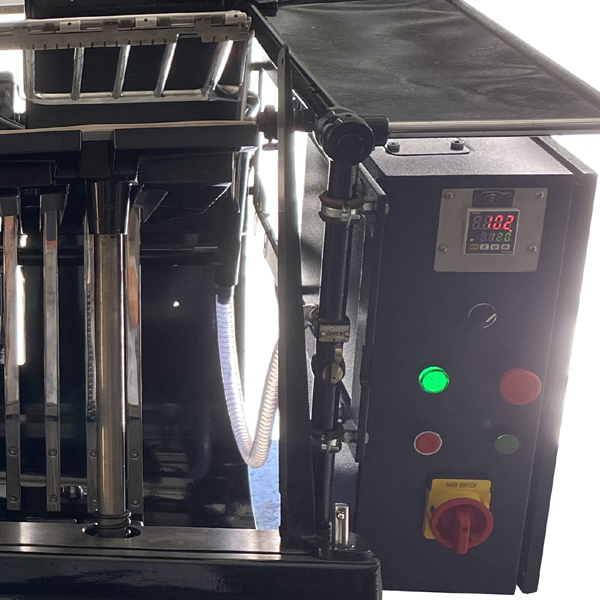

6. Electric panel with one temperature control instrument.Hot Plate:

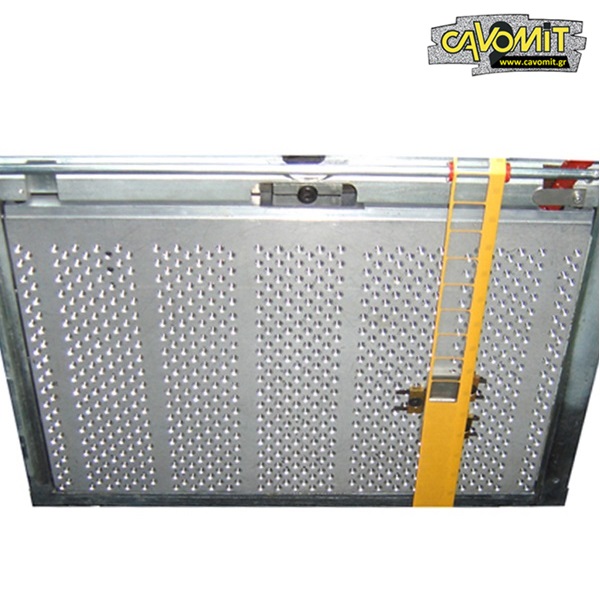

According to customer’s request, the hot-plate can be either honeycomb for dies 7 mm
or solid for dies 1,63 2,50 3,00 mm. Internal heating is regulated by
(1) thermo element and
(6) heating resistances
(1) temperature control Instruments - Technical Specifications
Technical specifications for mechanical systems CAVOMIT MDL-122X1-122X2-122X3-122X4 MDL–122X1 MDL–122X2 MDL–122X3 MDL–122X4 Size of platen press: 34 x 46 cm 34 x 46 cm 34 x 46 cm 34 x 46 cm Net hot-stamping area: 28 x 44 cm 28 x 44 cm 28 x 44 cm 28 x 44 cm Resistances: 6 6 6 6 Temperature instruments: 1 1 1 1 Temperature range: 0-200o C 0-200o C 0-200o C 0-200o C Heating capacity: 3000 W 3000 W 3000 W 3000 W Connection voltage: 380/460V-50/60 Hz 380/460V-50/60 Hz 380/460V-50/60 Hz 380/460V-50/60 Hz Foil-pull cylinders: 1 2 3 4 Foil-pull accuracy: 0.1 mm 0.1 mm 0.1 mm 0.1 mm Max foil width: 45 cm 45 cm 45 cm 45 cm Internal roll diameter: 16/25 mm 16/25 mm 16/25 mm 16/25 mm Foil length: 122 m 122 m 122 m 122 m Rewinders: 1 2 3 4 Die thickness: 7.0 mm 7.0 mm 7.0 mm 7.0 mm Average productivity: 1200 – 4000 1200 – 4000 1200 – 4000 1200 – 4000 Approx. weight: 50 Kg 65 Kg 80 Kg 95 Kg - Contact Form
