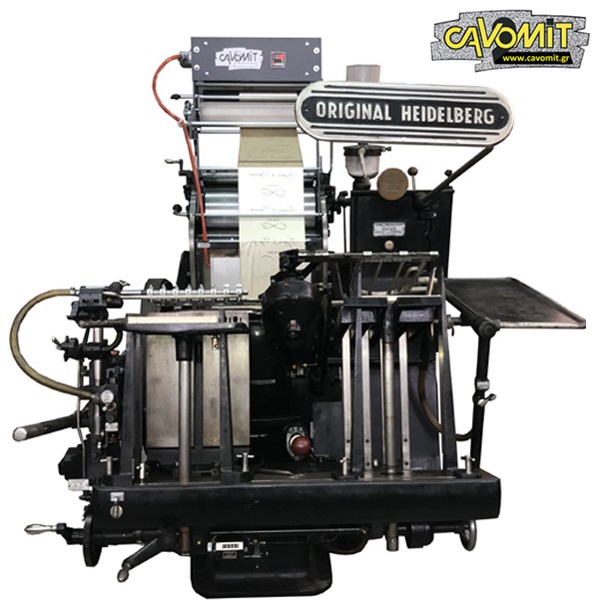

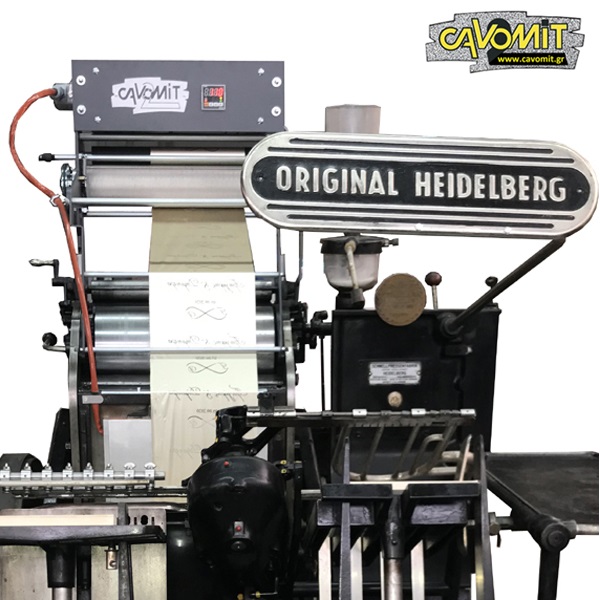

(MDL-61) New mechanical hot stamping system mounted on Heidelberg platen OHT 26X38 T machine

(MDL-61) New mechanical hot stamping system mounted on Heidelberg  platen OHT 26X38 T machine
The mechanical hot stamping system (MDL-61) for mounting on a Heidelberg 26X38 T
The system (MDL-61) it is manufactured in the factory of the Cavomit company,
and is placed on all machines Heidelberg 26X38 T by our trained technicians four hours.
The system is ideal for hot stamping.
Attention:
The mechanical (MDL-61) hot stamping system  is available
to you with Cavomit’s instructions to install it yourself easily.

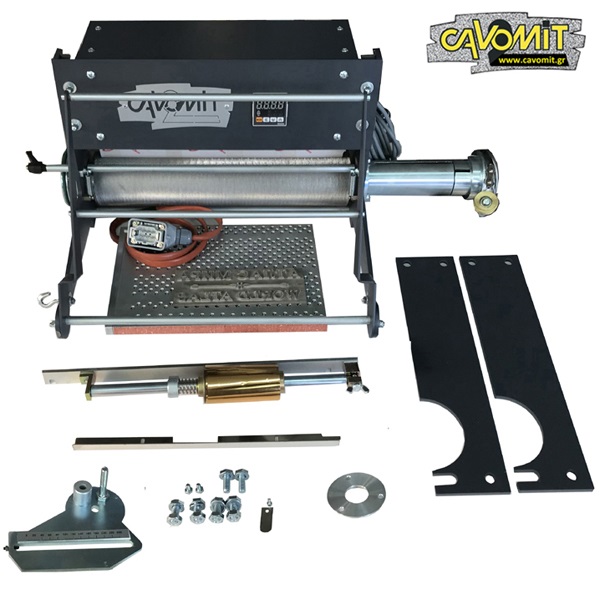

The system consists of the following parts:

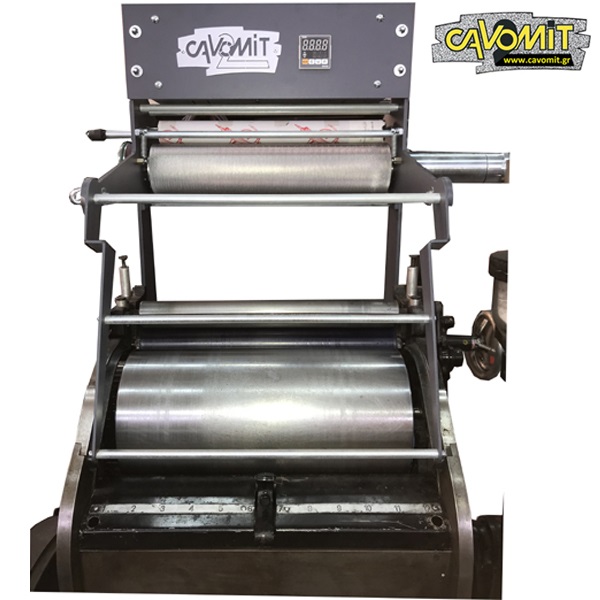

1. Mechanical one cylinder hot stamping system
2. Rewinding system for used foil.
3. Two metal bases for placing the system on the Heidelberg machine.
4. Heated plate with dimensions 300X230 mm. with clean printing surface 260X230 mm.
5. Hot stamping foil feeding system.
6. Electric panel with a one electronic temperature instruments.

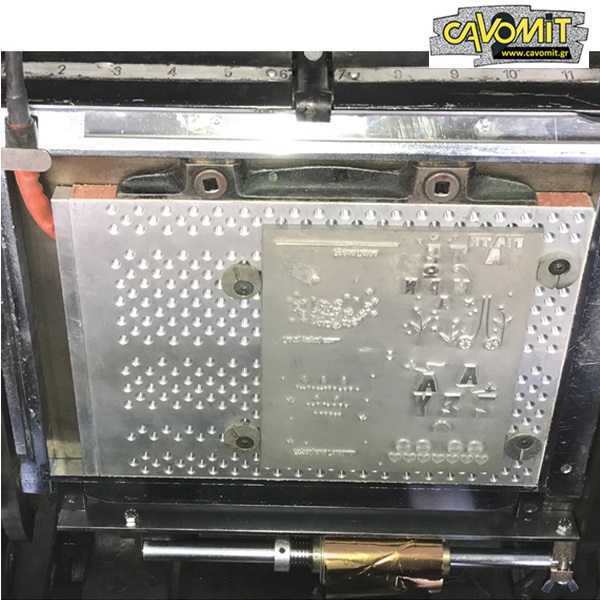

Hot Plate:
The heated plate is made of high alloy conductivity and is insulated from the main body of the machine.
Optimum heat distribution and energy saving.
According to the customer’s request, the heated plate can be perforated for cliches
(7) mm with special plate mounting systems for fine adjustments.
The one-piece for adhesive plates of dimensions (1.63) (2.5) (3.00) mm.
The temperature is controlled by:
1. Thermocouple,
3. Resistances
1. Electronic temperature instrument.
