    (ST 61X86) Rabolini Imperia Electronic Hot Stamping System.

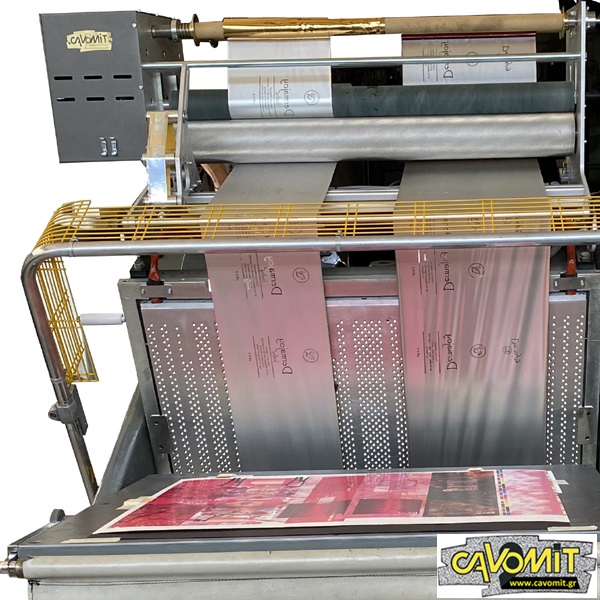

    The (ST 61X86) Rabolini Imperia Hot Stamping system
    with two Foil Pulls (and upgradeable to four Foil Pulls)
    The Mechanical & Electronic system is manufactured at the Cavomit factory.
    It is mounted on a machine (Rabolini Imperia) which is fully repaired and
    maintained and which carries a warranty from the Cavomit company.

    You install the new Mechanical or Electronic model in our company.

    Hot Plate:
    Single-piece hot plate, 16 mm thickness, with max. area coverage, made of high
    conductivity light alloy.
    The hot plate has a temperature insulation from the machine body for increased
    energy savings and optimal heat allocation.
    The hot plate is permanently placed in a printing chase allowing easy replacement with
    cutting/creasing chase or spare hot-plate for fast changeover of various printing jobs.
    The required precision of the printing temperature is acquired through
    (18) reliable, parallel resistances unevenly allocated all across the width of the plate in
    (6) precision temperature control zones, controlled by an

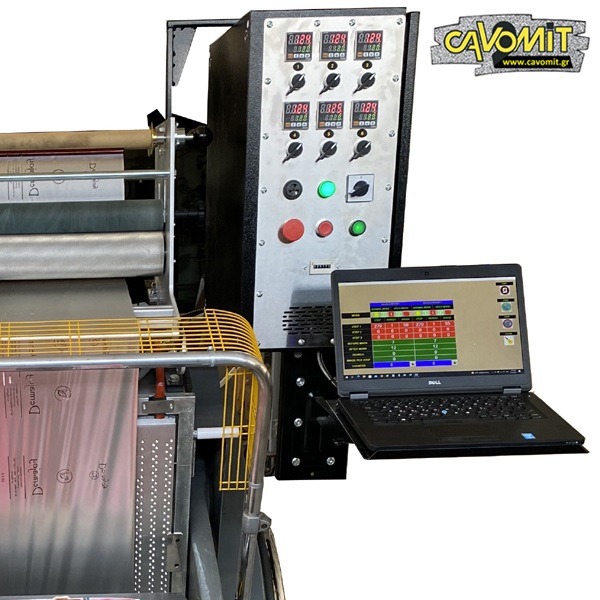

    (6)  electronic temperature instruments.

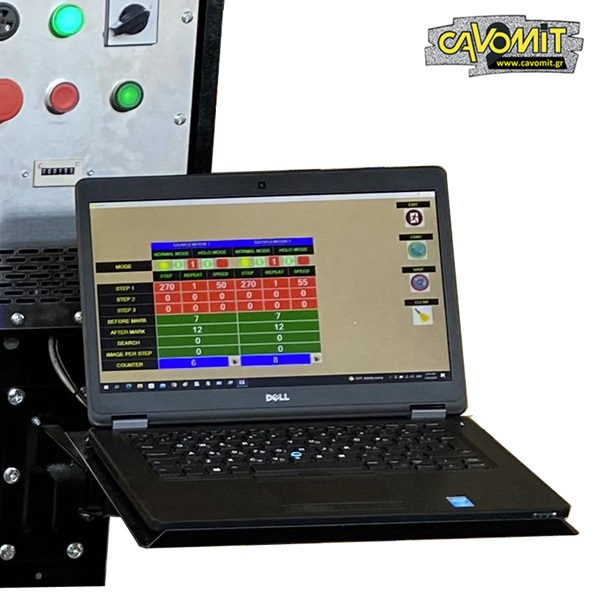

    A laptop with Windows 10 software is adapted to the machine for better operation.

  2. Technical Specifications
    Technical specifications (ST 61X86)  for Cutting & Hot Stamping  machine
    1. Paper parameters
    Paper size max 35X50 50X70 70X100 cm
    Paper size min Depending on the model
    Paper sheet thickness max. 600 grm
    Max. blocking area Depending on the model
    2. Operation control parameters
    Control system Laptop with Windows 10 software
    Foil-pulls & programs Standard 2 – upgradable to 4
    Pull step accuracy 0.01 mm
    Programming per pull cylinder 1-999 short pulls, 1 long pull 0-999 mm
    Foil-pull speed adjustment Stepper motors
    Foil-pull cylinders 2 stepper motors (maximum 4)

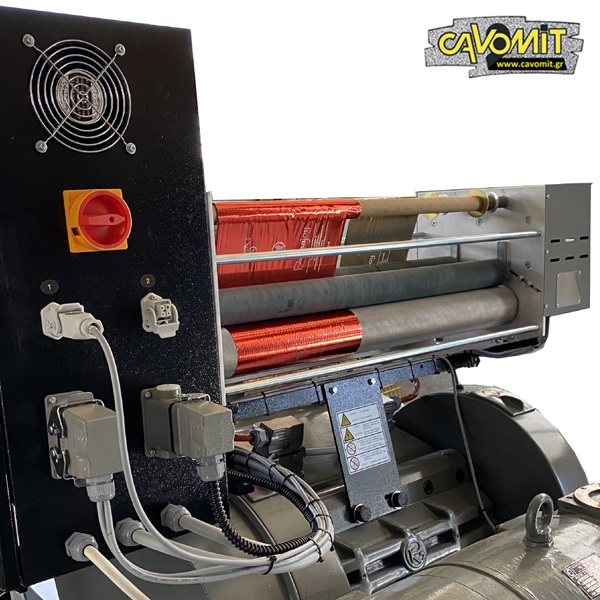

    Foil rewind units 2-4 synchronized to stepper motors
    Counters 3 electronic 1 Electric
    3. Foil parameters
    Foil roll width max Depending on the model
    Foil roll width min 15 mm
    Distance between rolls (min) 2 mm on same bar axis
    Roll core diameter 16 or 25 mm on same bar axis
    External diameter of foil roll feed Depending on the model
    External diameter of used foil 140 mm on 25 mm core
    4. Printing parameters
    Blocking speed Depending on the model controlled, 800-2000 sheets per hour

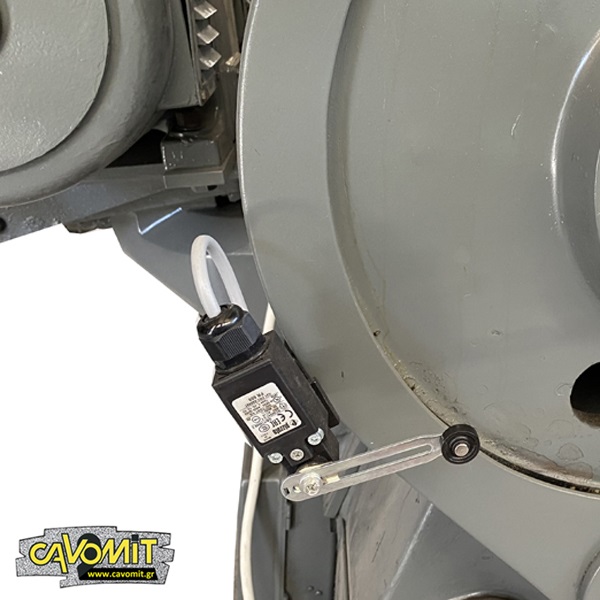

    Auto – stop guarding Instant halt and full speed resumption
    Alternative uses Cutting, creasing, embossing, punching
    5. Hot plate parameters
    Hot plate Single-piece, honeycomb hot plate
    Heating zones 6 for optimal temperature allocation
    Temperature regulation 6 temperature instrument
    Resistances Parallel 18 Χ 700 W
    Printing die height 7.00 mm
    Die mounting on hot plate With micrometric adjustable mounts
    6. Hologram registration parameters OPTIONAL
    Hologram registration Outside hot plate on multi-axial system
    Printing accuracy +/- 0.5 mm (per image), +/- 0.1 mm (per stripe)
    Printing speed As for standard foil
    Roll width Standard max 60 mm (other dimensions optional)
    Min distance of adjacent hologram rolls 40 mm edge-to-edge of foil
    Photoelectric switch Fast response, adjustable sensitivity
    Optical fibre Mounted at pre-set viewing angle
    Software Specially developed in-house by Cavomit
    7. Physical parameters
    Length Depending on the model
    Width Depending on the model
    Height Depending on the model
    Weight Depending on the model

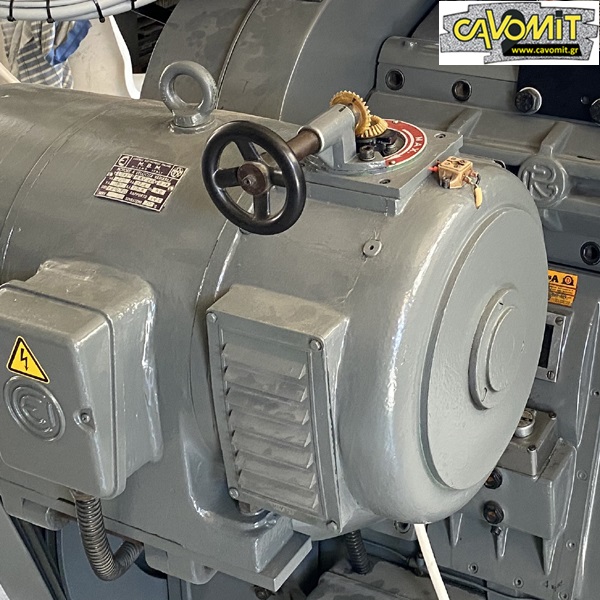

    Motor type Depending on the model
    Total connection capacity Depending on the model
    Voltage 380/460V, 50 Hz
