(ST.61X86) Rabolini Imperia Cutting Machine For Mounting Mechanical Hot Stamping System

For more information (CLICK) on the image

Category:
  1. General Details

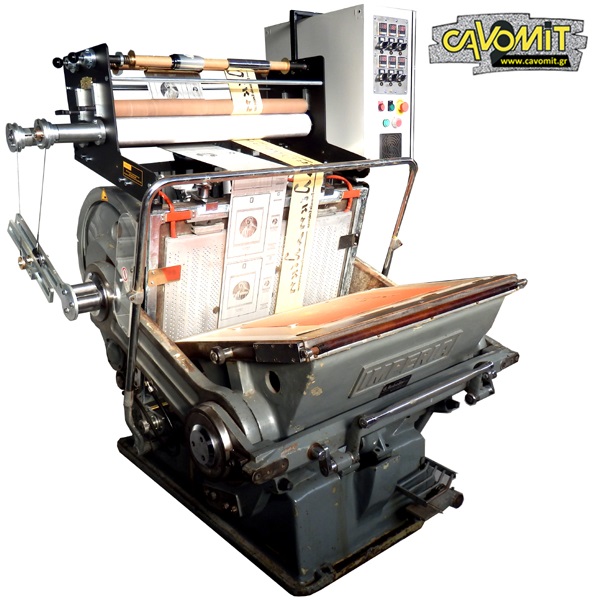

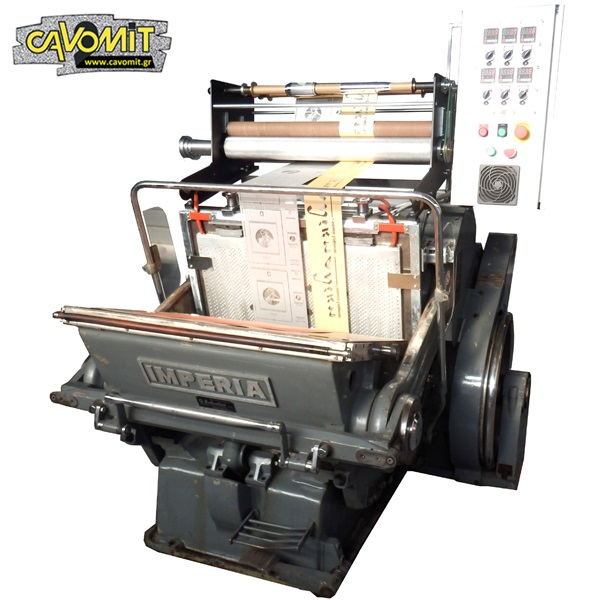

    (ST.61X86) Rabolini Imperia Cutting Machine
    For Mounting Mechanical Hot Stamping System

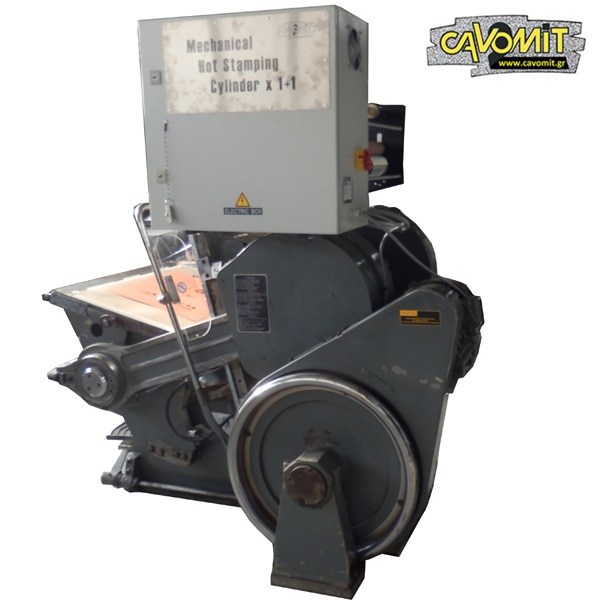

    The mechanical Hot Stamping system Mounting for
    (Rabolini Imperia ST.61X86)
    with Two Foil Pulls Is manufactured at the Cavomit company factory.
    It is placed on a machine (Rabolini Imperia) or on any other machine that is
    fully repaired and maintained and carries a guarantee from the Cavomit company.

    You place the new model Hot Stamping system Mechanical or
    Electronic for mounting in our Cavomit company.

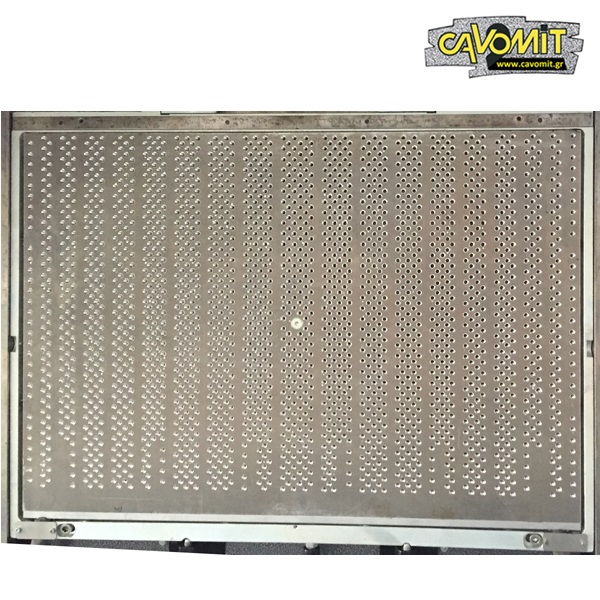

    Hot Plate:
    Single-piece hot plate, 16 mm thickness, with max. area coverage,
    made of high conductivity light alloy.
    The hot plate has a temperature insulation from the machine body
    for increased energy savings and optimal heat allocation.

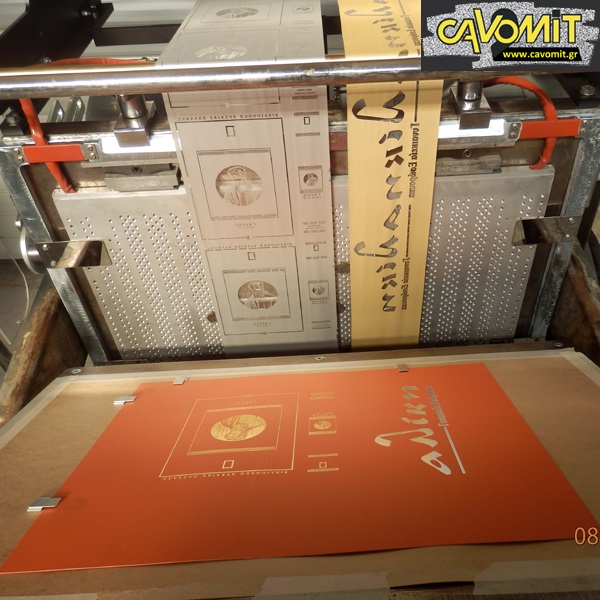

    The hot plate is permanently placed in a printing chase allowing easy
    replacement with cutting/creasing chase or spare hot-plate for fast
    changeover of various printing jobs.
    The required precision of the printing temperature is acquired through
    (18) reliable, parallel resistances unevenly allocated all across the width of the plate in

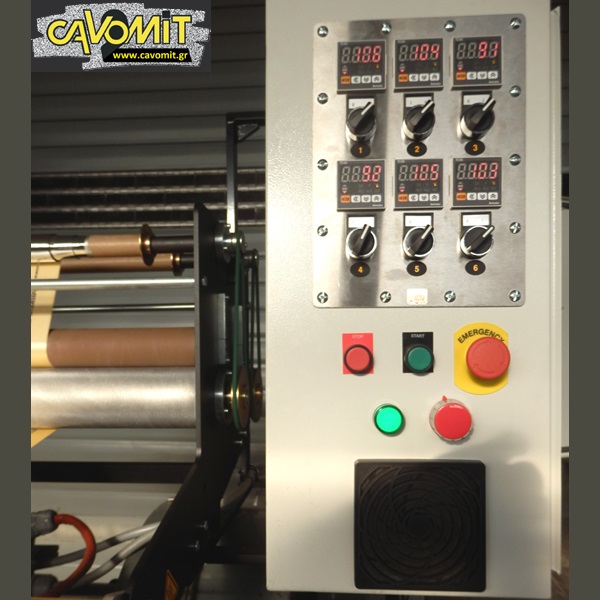

    (6) precision temperature control zones, controlled by an
    (6)  electronic temperature instruments.

  2. Technical Specifications
    Technical specifications for Rabolini Imperia (ST 61X86)  for Cutting & Hot Stamping  machine
    1. Paper parameters
    Paper size max 30X40  /35X50 / 50X70 / 70X100 cm
    Paper size min Depending on the model
    Paper sheet thickness max. 600 grm
    Max. blocking area Depending on the model
    2. Operation control parameters
    Control system Mechanical
    Foil-pulls & programs 2
    Pull step accuracy 0.01 mm
    Programming per pull cylinder 1-999 short pulls, 1 long pull 0-999 mm
    Foil-pull speed adjustment Mechanical
    Foil-pull cylinders 2  Mechanical system
    Foil rewind units 2
    Counters 1 Electric
    3. Foil parameters
    Foil roll width max Depending on the model
    Foil roll width min 15 mm
    Distance between rolls (min) 2 mm on same bar axis
    Roll core diameter 16 or 25 mm on same bar axis
    External diameter of foil roll feed Depending on the model
    External diameter of used foil 140 mm on 25 mm core
    4. Printing parameters
    Blocking speed Depending on the model controlled, 500-2000 sheets per hour
    Auto – stop guarding Instant halt and full speed resumption
    Alternative uses Cutting, creasing, embossing, punching
    5. Hot plate parameters
    Hot plate Single-piece, honeycomb hot plate
    Heating zones 6 for optimal temperature allocation
    Temperature regulation 6 temperature instrument
    Resistances Parallel 18 Χ 700 W
    Printing die height 7.00 mm
    Die mounting on hot plate With micrometric adjustable mounts
    7. Physical parameters
    Length Depending on the model
    Width Depending on the model
    Height Depending on the model
    Weight Depending on the model
    Motor type Depending on the model
    Total connection capacity Depending on the model
    Voltage 380/460V, 50 Hz
